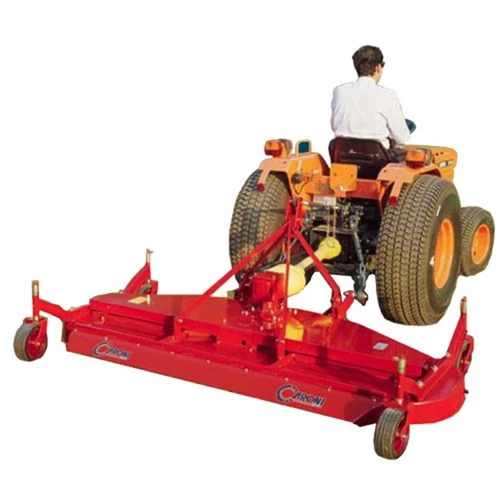

71 In. Caroni Estate Mower, Rear Discharge

Caroni mowers are known for their performance. This Caroni estate mower, TC 710NSRD, has a 71 inch cutting width and a rear discharge. The mower has a floating Category 1 hitch that allows it to contour the ground and requires a tractor with 20 to 40 HP. With its three blades moving up to 2,230 rpm, this mower is a wonderful choice for large grassy areas such as parks, estates, and playing fields.

Specifications:

• Caroni TC 710NSRD Estate Mower
• Lift type
• 497 lbs.
• Cutting width: 71 in.
• Number of blades: 3
• Cutting height: 1 to 4 in.
• Gearbox HP: 50
• Required tractor power: 20 – 40 HP
• PTO speed: 540 rpm
• PTO shaft included
• Blade speed: 2,230 rpm
• Category 1 hitch
• Weight: 497 lbs.
• Rear discharge with safety deflector
• Accessible grease points: 5
• Use ASC # 28540 for replacement blade
• For Replacement PTO Shaft, use ASC 54718A or ASC 89798
• Belt Replacement: 21023 V-Belt Qty. (2) Required.

Parts Breakdowns:

• 71″ Rear Mower – TC710NSLD

Additional Information:

• Caroni Rear & Front Lawnmowers, TC & F Series – Brochure
• Rear Mower TC Series – Specsheet

Check out the wide selection of estate mowers we carry at Agri Supply®.

This 3-point lift type estate mower has a 71 inch cutting width. Made by Caroni, the rear discharge mower is designed and built with performance in mind. The cutting height will adjust between 1 and 4 inches with spacers. The floating hitch allows the mower to easily follow the ground contour for a clean cut. This estate mower has 3 blades that operate at 2,230 rpm.
