Powerful 7.5 Amp. motor

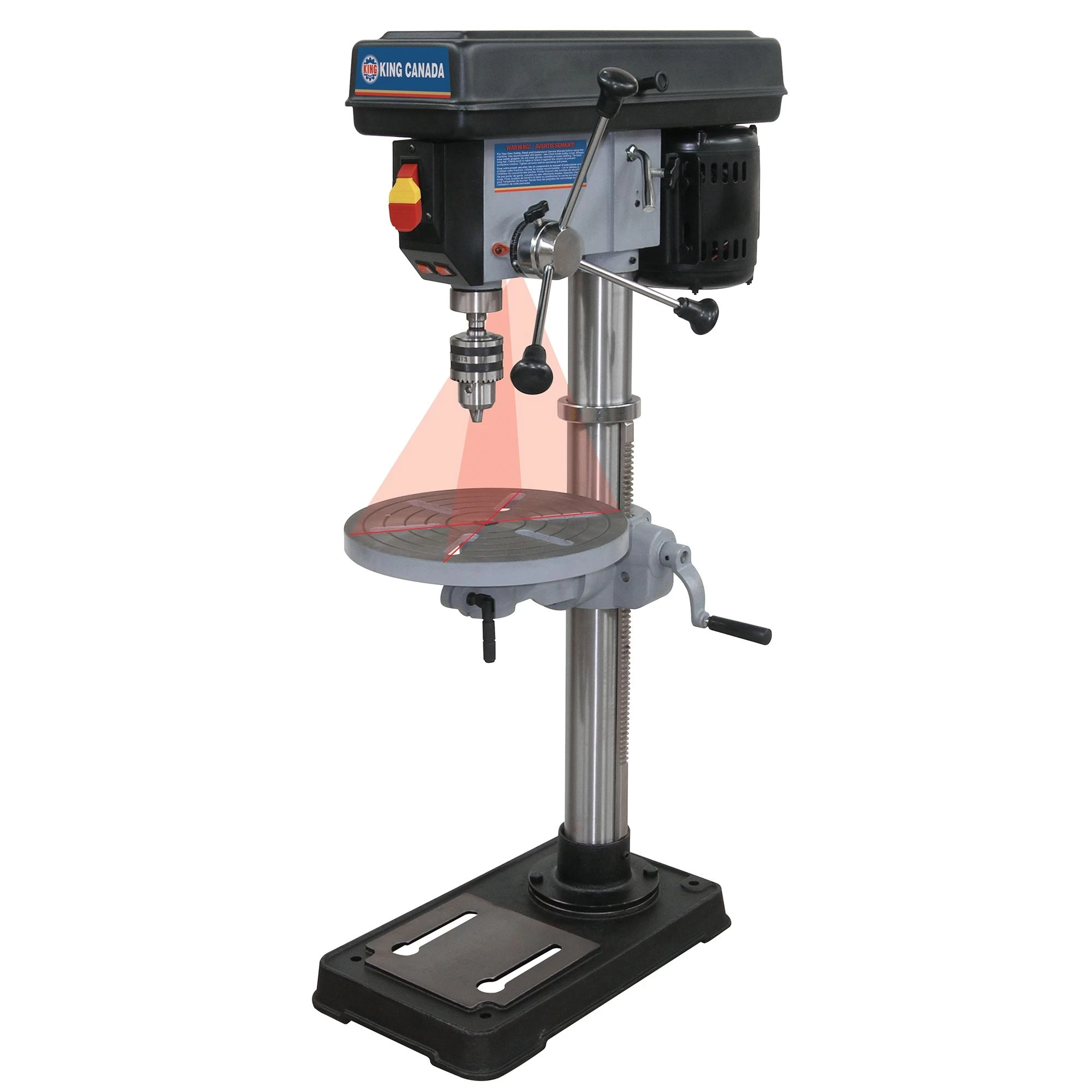

13″ bench drill press with dual intersecting adjustable laser guides
Halogen light incorporated into head (halogen light bulb included)
Accepts up to 5/8” shanked drill bits
Heavy-duty cast-iron table and base
16 speed (220-3,600 spindle RPM)
Spindle is supported by high quality ball bearings
45° tilting table for angular drilling
Positive depth stop for quick and easy adjustment
Comes with 5/8” drill chuck, chuck key and chuck key holder
CHUCK SIZE: 5/8″
SWING: 13″
STROKE3-1/8
MAX. DISTANCE FROM CHUCK TO TABLE: 13-1/2″
MAX. DISTANCE FROM CHUCK TO BASE: 24″
TABLE SIZE: 11-3/4″
SPINDLE TAPER: MT #2
QUILL DIAMETER: 55mm
SPEEDS: 16 (220-3,600)
MOTOR: 7.5 Amp.
VOLTAGE: 120V
ASSEMBLED DIMENSIONS (LXWXH)/ WEIGHT: 11-3/4″ x 24″ x 42″ / 114 lbs
