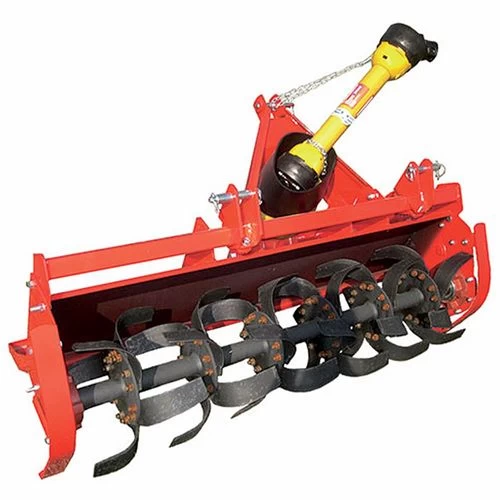

Caroni 56 In. Tillovator, Chain Driven

Built to perform with easy handling, this Caroni FL1400ASC has a working width of 56 inches and a working depth of 7 inches. The Tillovator comes with a 540 rpm PTO shaft and will work with 15 to 40 HP tractors. The tiller is chain driven and the chain is housed in along the side of the tiller in an oil bath. With a total of 36 blades, the tiller has 6 cutting blades on each of the 6 flanges. This Tillovator has a Category 1 hitch.

Specifications:

• Caroni FL1400ASC 56 In. Tillovator
• Working width: 56 inches
• Working depth: 7 in.
• Width of tiller displacement off of center axle: 6-1/2 in. to the right
• PTO: 540
• Required HP: 15 to 40
• Number of flanges: 6
• Blades per flange: 6
• 435 lbs.
• Chain housed in oil bath
• Replace right hand blades with ASC # 101402
• Replace left hand blades with ASC # 101403
• Replacement PTO Shaft use ASC # 45902A
• Replacement PTO SHaft use ASC # 45902A

Parts Breakdowns:

• 56″ Rotary Tiller – FL1400

Additional Information:

• Caroni Rotary Tillers FL & FM Series – Brochure

We carry a variety of Tillovators for you to select from here at Agri Supply ®.

This Caroni 56 inch tiller is powered by a 540 rpm power takeoff shaft that is included. The required tractor HP is 15 to 40 making this Tillovator perfect for many tractor owners. The tiller has 6 flanges with 6 blades per flange for excellent soil displacement. This Tillovator has a penetration depth of 7 inches.
