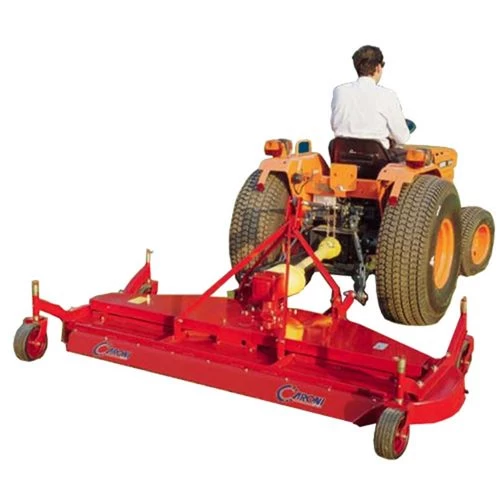

Caroni Estate Mower, 59 In. Cut, Rear Discharge, Lift Type

This Caroni estate mower has 3 blades, a blade speed of 2630 RPM, and a cutting width of 59 in. Designed for any type of grassy area from fields to golf courses, parks to motorway grass verges, and lawns to sports grounds, this rear discharge mower provides a clean cut. Four extra-large wheels always ensure a precise cut, which may range from 1 in. to 4 in.

All models are based on a support chassis consisting of a single cold-drawn block. Toughness and compactness are just two more features that apply to this adaptable, easy-to-handle Caroni mower.

Some other features are its easy-to-adjust cutting height, which can be altered simply by shifting the spacers mounted on the fork shaft, its 3RD anchoring point, which “floats” to allow the machine to follow the contour of the ground, and its easily-regulated belt tension, which simply requires the adjustment of a single screw. The mower has seven easily-accessible greasing points and the thickness of the steel on this mower is 9 gauge.

Specifications:

• 59 In. Caroni Estate Lift Type Rear Discharge Mower TC590NSRD
• 1 Screw Adjustment For Belt Tension
• Standard Hitches Work On Any Type Of Tractor
• Adjustable Cutting Heights: 1 in. to 4 in.
• Use For Any Type Of Grassy Area
• 4 Extra-Large Wheels Ensure A Precise Cut
• Pto Speed: 540 RPM
• Includes A Greasing Kit
• Deck Thickness: 4 mm / 8 Gauge
• Gear Box Oil Is 85-90W
• Includes A PTO Shaft
• Cutting Width: 59″
• Gearbox HP: 50
• HP Rating: 15-30
• Blade Speed RPM: 2630
• Number Of Blades: 3
• Hitch Category: 1
• Rear Discharge Mower
• Weight: 404 lbs.
• Simple Design That Is Easy To Repair And Service
• Has Ability To Cut Close And Under Fences
• Replacement blades use ASC # 28539
• For Replacement PTO Shaft, use ASC 54718A or ASC 89798
• Belt Replacement: 21017 V-Belt Qty. (2) Required.

Parts Breakdowns:

• 59″ Rear Mower – TC590NSLD

Additional Information:

• Caroni Rear & Front Lawnmowers, TC & F Series – Brochure
• Rear Mower TC Series – Specsheet

The versatility, simplicity, and safety are the three main features of the TC rear mower. It is designed and produced with the most up-to-date technologies and the most advanced construction systems, and it is ideal for use with tractors ranging between 15 and 30 HP. The hitch is a category 1, and the PTO speed is 540 RPM. For more information, see the description below.
